Used 2018 Forest River RV Charleston 430BH

Motor Home Class A - Diesel

Stock #JG8737

Baton Rouge, LA

1 of 6

Specifications

Sleeps	8	Slides	4
Length	42 ft 11 in	Ext Width	8 ft 4 in
Ext Height	12 ft 9 in	Int Height	7 ft
Hitch Weight	15000 lbs	GVWR	44320 lbs
Fresh Water Capacity	86 gals	Grey Water Capacity	66 gals
Black Water Capacity	42 gals	Tire Size	275/80R22.5
Furnace BTU	50000 btu	Fuel Type	Diesel
Miles	29044	Engine	Cummins ISL9
Chassis	Freightliner XCR	Horsepower	450 hp
Fuel Capacity	100 gals	Wheelbase	266 in
Number Of Bunks	2	Available Beds	King
Refrigerator Type	Residential French Door with Ice Maker	Convection Cooking	Yes
Cooktop Burners	2	Number of Awnings	1
Axle Weight Front	14320 lbs	Axle Weight Rear	20000 lbs
AC BTU	28500 btu	TV Info	Cab 40" LED TV, LR 40" LED TV, BR 32" LED TV, Exterior 40" LED TV
Awning Info	14'	Washer/Dryer Available	Yes
Gross Combined Weight	59320 lbs	Shower Type	Angled
Electrical Service	50 amp	VIN	4UZFCHCY4HCJG8372

Features

Standard Features

Automotive & Cockpit

Freightliner XCR Raised Rail Chassis
Cummins ISL9 450HP @2100RPM, 2200GOV RPM, 1250 LB/FT @ 1400RPM
Allison 3000MH 6-speed transmission
120V Engine Heater 1000W
22.5″ Polished Aluminum Wheels
Michelin XZA3+ 275/80R22.5 16 ply radial tires
Trailer Hitch Capacity, 15,000 lb
Allison electronic push button shifter
100 gallon, locking dual fill fuel tank
13 Gallon DEF Tank
LCD engine message center
Day time running lights
7-Pin tow power connector
18.7 CFM air compressor
Farr Eco-air cleaner
Air filter restriction indicator
Fuel/water separator
Brake line air dryer with heater
Automatic, heated moisture ejectors
Power steering
Washer/wiper with intermittent function
160 amp alternator
Two (2) Maintenance Free 1900CCA batteries
Full air ABS brakes w/ auto slack adjuster
C-Brake by Jacobs with LOW/OFF/HI brake dash switch
Telescopic/tilt steering wheel
Neway air suspension front and V-Ride rear
Sachs custom tuned shock absorbers
55 degree wheel cut
Auto air suspension deflation system
Cross flow, rear mounted radiator
Transmission oil cooler
5 year / 100,000 mile coolant (some maintenance required)
V.I.P. Smart Wheel, 4-Spoke 18″ premium burl wood steering wheel
Power stepwell cover
Entry assist handle
Electronic cruise control with high idle
Multiple auxiliary charging ports at dash
Ingersoll-IMT F22 10,000# drop center tag axle
Adjustable suspended pedals with Teleflex flush mount accelerator
Bendix ADB22X Air Disc Front Brakes

Construction & Exterior

Fiberglass front and rear caps
Full body painted exterior (4X clear coat)
Four (4) point fully auto hydraulic leveling system w/ auto air dump
Morryde steel basement structure
Tru-Brace chassis support system
Rust resistant aluminized steel chassis skirts
Diamond Shield front mask protective film
Electric generator Slide
1 Piece fiberglass Roof
Top-mount, remote, exterior, heated mirrors with cameras
Frameless dual pane, dark tint windows
Automotive foam and Ziebart seal undercoating
Carefree power door awning
Carefree Freedom patio box awning w/LED lighting and auto retract with direct response electronics
Carefree slide toppers with covers
Full height strut assisted compartment doors w/full pass through storage
"One Key" system, ext-compartment, entry door & fuel fill doors
Quiet integrated A/C intake/ducting roof system
Crowned and layered vacuum bonded fiberglass roof
Vacuum bonded 3” floor with tubular steel frame
Gel coated vacuum bonded aluminum tube with fiberglass and block foam insulation sidewalls
1/2″ Structure wood flooring
Block foam polystyrene insulation
33″ Entryway
In wall channeled drains for A/Cs
Steel basement construction
Tubular steel firewall with polystyrene insulation
Shower skylight
Lighted exterior assist handle
Two piece rear ladder
84″ interior ceiling height
PTL Entrance door with deadbolt
Auxiliary air chuck (front firewall)
Auxiliary LP supply, quick connect (passenger side)
Full length mud flap with chrome Forest River name
Slide tray in basement compartment

Electrical

50A service with auto transfer switch
10kW Onan diesel generator w/electric slide tray
Electronic battery disconnect switch
Remote generator start switch on dash and in Bedroom
LED Ceiling light package
Driver and Passenger LED ceiling map lights
Cosmetic bathroom lighting (N/A 430RB)
Decorative wall and dinette lighting where applicable
Auxiliary engine start switch at dash
Individual reading lights bed overhead
2000 W pure sine inverter-converter
Euro style 12V Switches
Auto generator start module
Dimmer control living room and bedroom ceiling lights
Four (4) Six volt deep cycle house batteries
Two (2) Master electric convenience shut off switches
30″ Auto/Power entrance step
Patio light
Easy access fuse/load centers
Dimmer control living room & bedroom ceiling lights
Docking lights
Pop up desk dual USB 110v receptacle at desk (N/A 430BH)
Energy management system with inverter assist
Keyless Entry
35′ Power cord with electric reel

Plumbing

Variable speed constant pressure water pump
Bath - Solid surface under mount sink
Kitchen - Stainless steel under mount sink
Whole house water filter
Black water tank flush system
Kitchen-High rise single lever faucet with pull-out sprayer
Double lever lavatory faucets
One piece fiberglass shower with glass door
Porcelain china stool
Techma-macerator stool (rear bath) (N/A 430BH)
Clean easy exterior shower hose
Individual zoned hot/cold manifold water supply system
360 Siphon vent caps

Driver/Passenger Area

One piece windshield
Power front night and day shade
Manual passenger & driver windows day/night shade
Dash burl panels
Fog Lights
Dash radio with integrated color back-up and side camera pkg with navigation
Wrap around cockpit with nine (9) gauge instrument cluster
Driver 360 degree swivel and recline seat w/6-Way power adjustment
Passenger 360 degree swivel and recline set w/power 6-Way adjustment and power footrest
Soft touch Flexsteel driver/passenger seat
Passenger seat console (vinyl wrapped)
Lighted step well
Two (2) Defroster fans with high and low settings
Driver/passenger cup holders
Automotive dash AC/Heater with deluxe controls
Tile with solid surface edged step well
Premium Freightliner gauge package w/chrome bezels

Entertainment

50″ SONY® LED TV, living room (N/A 430BH)
40″ SONY® LED TV, living room with slide (N/A 430RB)
32″ SONY® LED TV, bedroom
40″ SONY® LED TV, front dash overhead
BOSE® premium sound bar system with powered subwoofer
Two flip down LCD monitors with DVD and AV inputs (1 per Bunk) (N/A 430RB)
Trav’ler (Winegard) satellite prep.
Cable TV prep
Hi-Definition digital TV antenna with signal strength indicator
High definition Cat 6 matrix signal distribution
Blu-ray DVD Player
Ext/entertainment center in sidewall: 40″ TV and Radio with auxiliary jack
Two pair dash stereo speakers

Interior

Polished porcelain tile
Native Hardwood Cabinetry
Raised panel hardwood cabinet doors
Hidden hinges and bar pull style cabinet hardware
Carpeted living room and dining slide-outs
Hardwood lighted window valances
Wardrobe shoe storage rack (N/A 430RB)
Bedroom carpet with padding (N/A 430RB)
Villa sofa (with hide a bed) (N/A 430RB)
Villa expandable sofa (with hide a bed) (N/A 430BH)
Villa love seat (N/A 430RB)
Polished solid surface kitchen/dinette c-tops with flush sink covers
Polished solid surface backsplash with tile inserts kitchen
Polished solid surface c-tops throughout
Soft close ball bearing drawer guides in kitchen
Full extension ball bearing metal drawer guides
Galley storage compartment for range and sink covers
Kitchen Pantry (N/A 430BH)
Pull out kitchen countertop
Bi-fold doors/pantry, bunk beds (N/A 430RB)
Free-standing hide-a-leaf dinette with hutch and four chairs (N/A 430BH)
"Soft Touch" dream booth dinette with storage underneath (N/A 430RB)
"Soft Touch" padded ceiling with living room hardwood feature
Roller style day/night shades
Large bedside wardrobe (N/A 430RB)
Dresser drawers and wardrobe type cabinets
72″ x 80″ Select Comfort air, king bed with bedspread and decorative pillows
Hardwood headboard with padded insert
Contoured overhead cabinets in slide out rooms
Bed night stands
Mirrored medicine cabinets
Towel bar, toilet paper holder and towel ring
Bedroom 2 speed ceiling fan
Installed wall safe

Appliance

15,000 BTU with heat pump (front/rear), 13,500 BTU (middle) low profile A/C’s
Holding tank heat pads
Continuous flow tankless gas hot water heater
30,000 BTU Front furnace
20,000 BTU Rear furnace
30″ OTR convection microwave oven
Residential French door refrigerator with ice maker
True-Induction electric cooktop
Fan in bathrooms with built in thermostat control
Fantastic fan in galley with wall thermostat and rain sensor
Stackable washer/dryer
Electric fireplace
Basement freezer
Central vacuum

Safety

110 GFI protected circuits
Carbon monoxide detector
LP gas detector w/auto tank shutoff
Smoke alarm
Egress window
Surface mounted fire extinguisher

Options

UltraSteer tag axle
Free-standing hide-a-leaf dinette w/ hutch and four chairs (N/A 430RB)
Executive dark cherry wood
Trav’ler (Winegard) satellite antennae (DirectTV-US) (Shaw-Canada)
Fisher/Paykel stainless steel dishwasher

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

We are here to help, call us at
225-272-8000 or Contact Us

We are here to help!

225-272-8000
Contact Us
Request Quote

;

The RV Shop is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @225-272-8000 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Disclaimer: Out-of-State Vehicle Financing Policy
We’re excited to work with customers from all over the country and are dedicated to making your purchase process simple and seamless. To complete a vehicle purchase from outside Louisiana, financing must be arranged through one of our partnered lenders. This requirement helps us meet legal guidelines and deliver a streamlined experience across state lines. For more information or to get started, give us a call at 225-272-8000.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2018 Forest River RV Charleston 430BH

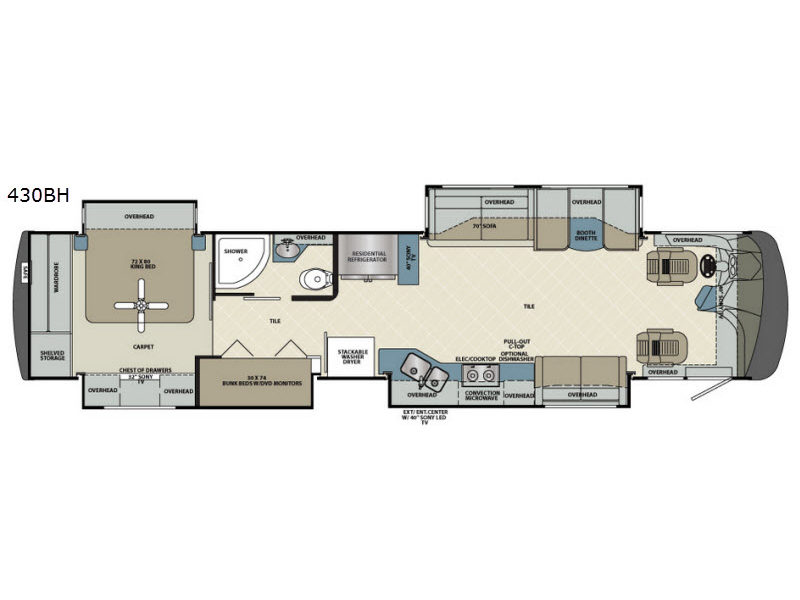

430BH Floorplan
